TouchMonitor TM7 comes in a variety of incarnations. We have taylor-made a number of models suited for specific applications, but if none of those fit your needs, you can custom build a TouchMonitor.

Form Factor

Most customers prefer their TouchMonitor in the traditional table-top form factor, but we have other form factors to choose from.

Our so-called OEM version - the "raw" version with no enclosure - is relevant if you need to mount the TouchMonitor in your own environment. Also, the OEM version can be expanded with a rack-mount kit to fit any standard 19" rack in a machine room or OB van.

20700
20700OEM


I/O Options

We have a large number of hardware I/O options, fitting practically every need for connecting to TouchMonitor like analog, AES3, AES3id, 3G-SDI or AoIP.

Analog-Digital D-Sub (HW20711)

  • 8 analog inputs balanced (D-Sub)
  • 8 digital inputs + 8 digital outputs
    (4 x AES3 In, 4 x AES3 Out, D-Sub)

Analog D-Sub Digital BNC (HW20712)

  • 8 analog inputs balanced (D-Sub)
  • 8 digital inputs (4 x AES3id In, BNC)
  • 8 digital outputs (4 x AES3id Out, BNC)

Digital D-Sub 3G-SDI (HW20714)

  • 8 digital inputs + 8 digital outputs
    (4 x AES3 In, 4 x AES3 Out, D-Sub)
  • 3G-SDI interface for up to 32 input channels

Digital D-Sub (HW20715)

  • 16 digital inputs (8 x AES3id In, D-Sub)
  • 16 digital outputs (8 x AES3id Out, D-Sub)

AoIP Dante® RJ-45 (HW20717)

  • 32 channel Dante® AoIP (RJ-45)



AoIP Ravenna RJ-45 (HW20718)

  • 32 channel Ravenna/AES67/ST 2110 AoIP (RJ-45)

Rack-Mount

TM7 can be rack-mounted, using the 20700OEM with different 19"/3U mounting adapters. You would also need a PSU.



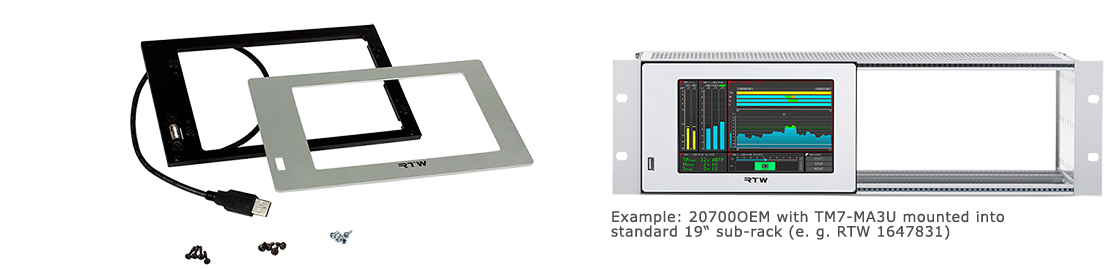

TM7-MA3U

(3U mounting adapter)
Mounting kit including a 19“/3U/42HP rackmount panel (half-19“/3U) and fastening material for mounting TM7-Mount or 20700OEM into standard 19“ sub-racks (e. g. RTW 1647831).

1647831

(19"/3U rack frame)
Standard 19“ sub-rack for mounting up to 2 TM7-Mount or 20700OEM in conjunction with TM7-MA3U mounting kit. Includes a blank panel to cover unused space.

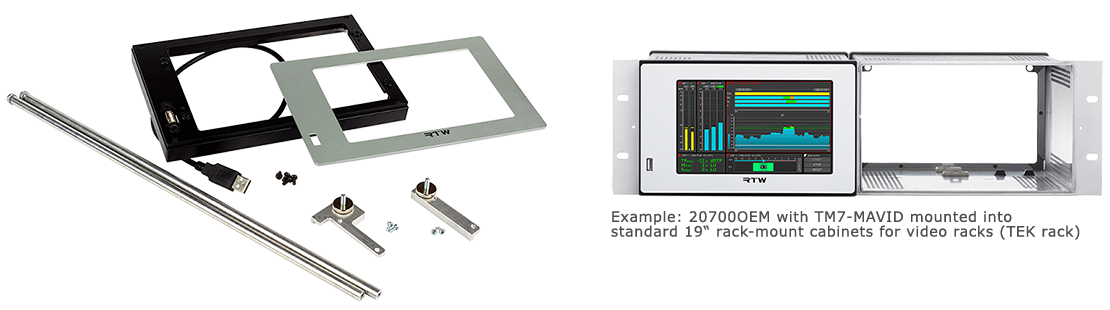

TM7-MAVID

(VID mounting adapter)
Mounting kit including a half-19“/3U plug-in panel and fastening material for mounting 20700OEM into standard 19“ rack-mount cabinets for video racks.

Accessories

1178-R - Wide Range Power Supply

Wide range 100 - 240 V AC/24 V DC 2.71 A, table-top power supply with corresponding power cable for different power supply systems

1167 - Digital Snake Cable 4 m

Snake cable 4 meter, distributes 25p-D-Sub-M to 4 x XLR-F and 4 x XLR-M (digital inputs and outputs)

1186 - Analog Snake Cable 4 m

Snake cable 4 meter, distributes 25p-D-Sub-M to 8 x XLR-F (analog inputs)
