Custom Models

Build Your Own TouchMonitor TM9


  • Desktop, rack-mount or any-mount?
  • Dante, Ravenna, AES, Analog, SDI
  • Accessories
  • Desktop, rack-mount or any-mount?
  • Dante, Ravenna, AES, Analog, SDI
  • Accessories

TouchMonitor TM9 comes in a variety of incarnations. We have taylor-made a number of models suited for specific applications, but if none of those fit your needs, you can custom build a TouchMonitor.

Form Factor

Most customers prefer their TouchMonitor in the traditional table-top form factor, but we have other form factors to choose from.

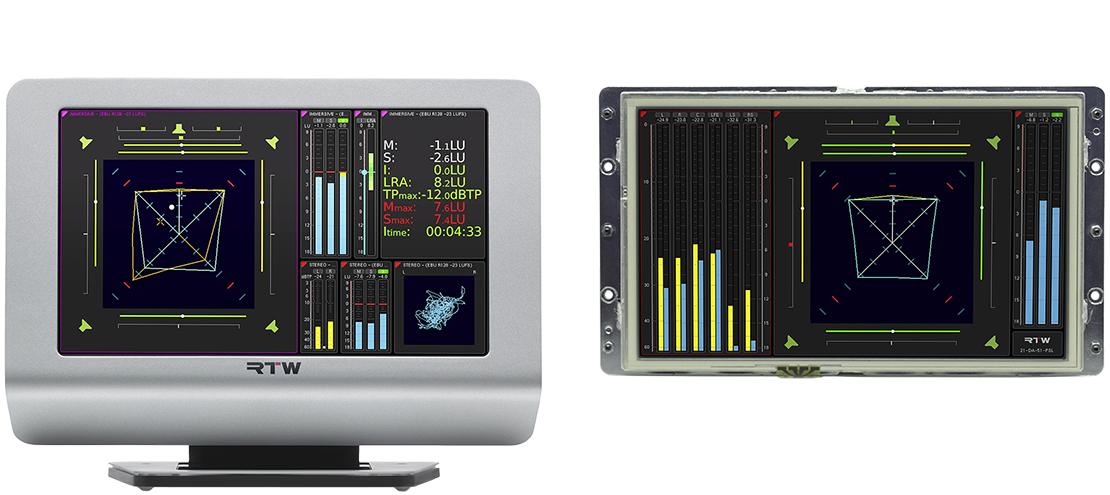

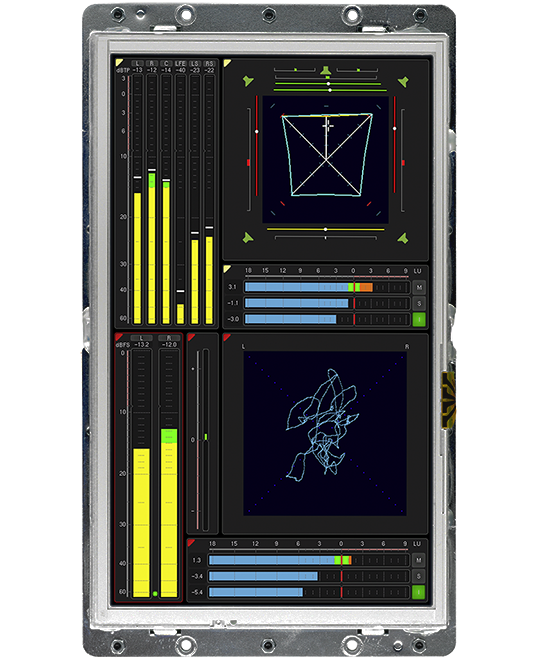

Our so-called OEM version - the "raw" version with no enclosure - is relevant if you need to mount the TouchMonitor in your own environment. Also, the OEM version can be expanded with a rack-mount kit to fit any standard 19" rack in a machine room or OB van.

20900
20900OEM


I/O Options

We have a large number of hardware I/O options, fitting practically every need for connecting to TouchMonitor. Most of the I/O interfaces can be upgraded with a 3G-SDI hardware option.

Analog-Digital D-Sub (HW20911)

  • 8 analog inputs balanced (D-Sub)
  • 8 digital inputs + 8 digital outputs
    (4 x AES3 In, 4 x AES3 Out, D-Sub)
  • Expandable with 3G-SDI (HW20930)

Analog D-Sub Digital BNC (HW20912)

  • 8 analog inputs balanced (D-Sub)
  • 8 digital inputs (4 x AES3id In, BNC)
  • 8 digital outputs (4 x AES3id Out, BNC)
  • Expandable with 3G-SDI (HW20930)

Digital D-Sub (HW20913)

  • 16 digital inputs (8 x AES3id In, D-Sub)
  • 16 digital outputs (8 x AES3id Out, D-Sub)
  • Expandable with 3G-SDI (HW20930)

Digital BNC (HW20914)

  • 16 digital inputs (8 x AES3id In, BNC)
  • 16 digital outputs (8 x AES3id Out, BNC)
  • Expandable with 3G-SDI (HW20930)

Analog D-Sub (HW20915)

  • 16 analog inputs balanced (D-Sub)
  • Expandable with 3G-SDI (HW20930)

AoIP Dante® RJ-45 (HW20917)

  • 32 channel Dante® AoIP (RJ-45)



AoIP Ravenna RJ-45 (HW20918)

  • 32 channel Ravenna/AES67/ST 2110 AoIP (RJ-45)

3G-SDI Option (HW20930)

  • 3G-SDI interface for up to 32 input channels. This is an expansion of audio interfaces HW20911 to HW20915



Rack-Mount

TM9 can be rack-mounted, using the 20900OEM with 19"/4U mounting adapter TM9-MA4U. You would also need a PSU

Accessories

1178-R - Wide Range Power Supply

Wide range 100 - 240 V AC/24 V DC 2.71 A, table-top power supply with corresponding power cable for different power supply systems

1167 - Digital Snake Cable 4 m

Snake cable 4 meter, distributes 25p-D-Sub-M to 4 x XLR-F and 4 x XLR-M (digital inputs and outputs)

1186 - Analog Snake Cable 4 m

Snake cable 4 meter, distributes 25p-D-Sub-M to 8 x XLR-F (analog inputs)
