Real Time Analyzer (RTA)
Monitor the universal quality of your sound:
Real Time Analyzer
Display of the spectral content of the input channels
Like the human ear senses an audio signal, the RTA (Real Time Analyzer) displays the spectral content of the selected input channel(s) using 31 filter bands in 1/3 octave steps, 61 filter bands in 1/6 octave steps or 120 filter bands in 1/12 octave steps. Similar to an oscilloscope, it measures the magnitude of an input signal versus frequency within the full frequency range of the instrument.
- Display of the spectral content of one or more input channel(s)
- Filter bands in 1/3 octave, 1/6 octave, or 1/12 octave steps
- Switchable H band, selectable low frequency range
The normal frequency range reaches from 20 Hz to 20 Khz and equals the typical range a human ear can detect. An optional "H" band shows spectral signal components above 20 kHz.
Alternatively, the low frequency range (LF - 5 Hz to 5 kHz) can be switched. This frequency span providing a higher resolution covers almost all parts of the human speech.
The human ear perceives different frequencies with the same acoustic pressure not as identically loud. For this reason different standardized weighting filters can be selected. The display’s reference point and resolution can be shifted for a clearer readout in the window. The RTA’s layer display is always relative.

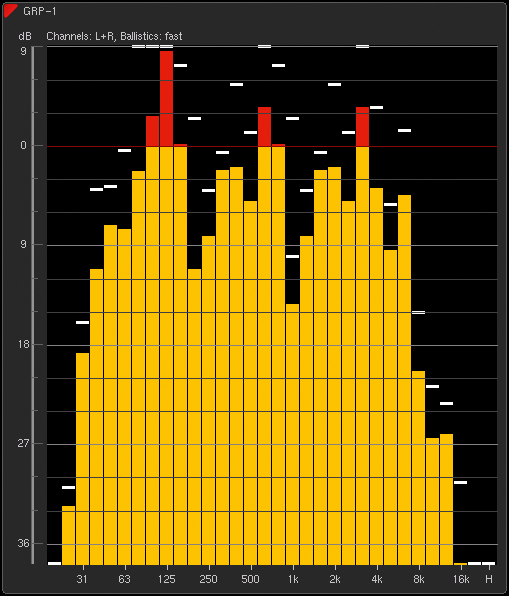

1/3-octave (31 bands)<

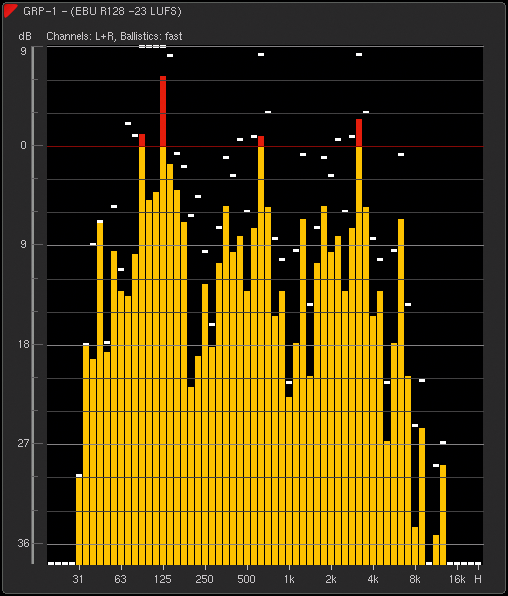

1/6-octave (61 bands)

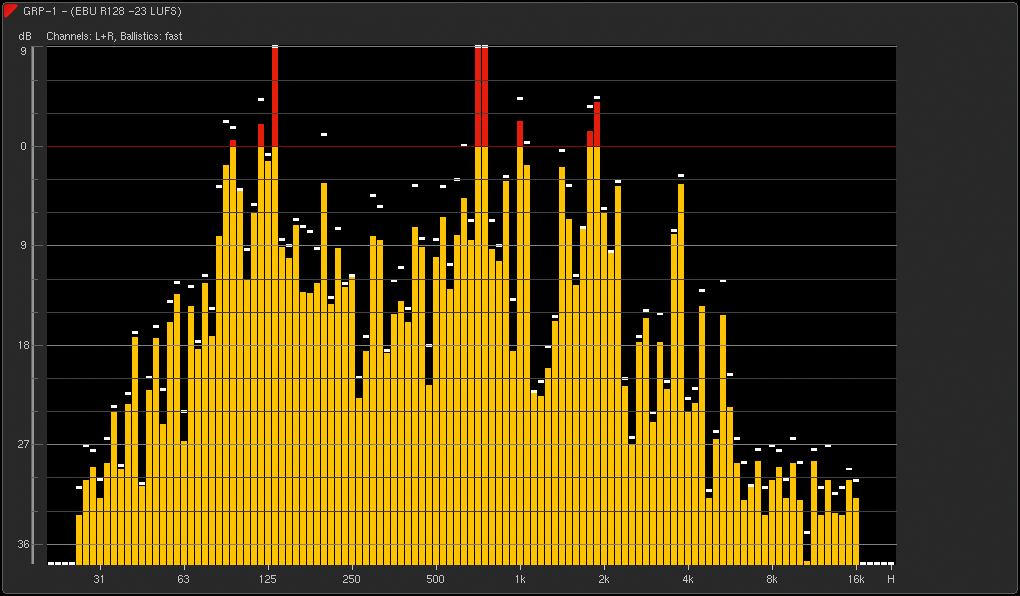

1/12-octave (120 bands)
×
RTA - Real Time Analyzer
|
||||
|---|---|---|---|---|
| Functions: |
|
|||
| Input sources: | all channels without LF, all channels, Front, Rear, L/R, single channels, Stereo pairs, depending on selected mode | |||
| Frequency range |
|
|||
| Number of bands |
|
|||
| Weighting filter: | Linear; Linear, A, C selectable | |||
| Peak hold indicator: | 1 s, 2 s, 4 s, 10 s, 20 s, 30 s, manual reset or off | |||
| Measuring range: | 45 dB max. | |||
| Scaling: | 3, 6, 9 dB | |||
| Integration time (ballistics): | Impulse, Fast, Slow, Peak (10 ms) | |||
×
RTA - Real Time Analyzer
The example shows the RTA in 1/6-octave mode with a Stereo signal
Move the mouse accross the display elements to get the corresponding descriptions.
Like the human ear senses an audio signal, he RTA (Real Time Analyzer) displays the spectral content of the selected input channel(s) using 31 filter bands in 1/3 octave steps, 61 filter bands in 1/6 octave steps or 120 filter bands in 1/12 octave steps. Like an oscilloscope it measures the magnitude of an input signal versus frequency within the full frequency range of the instrument.
The normal frequency range reaches from 20 Hz to 20 Khz and equals the typical range a human ear can detect. An optional "H" band shows spectral signal components above 20 kHz.
Alternatively, the low frequency range (LF - 5 Hz to 5 kHz) can be switched. This frequency span providing a higher resolution covers almost all parts of the human speech.
The human ear perceives different frequencies with the same acoustic pressure not as identically loud. For this reason different standardized weighting filters can be selected. The RMS integration time is pursuant to IEC651. The RMS peak rises with 10 ms, the fallback time is the same as a peakmeter. The display’s reference point and resolution can be shifted for a clearer readout in the window. The RTA’s layer display is always relative.
Practical Use
- Keep an eye on the general aspects of your audio
- Monitor the spectral distribution of your audio signal
- Essential for music productions with extremely low-frequency signal components
- Displays frequences outside your hearing range
Requirements
- TouchMonitor TM7, TMR7 or TM9
- Optional on TM7 or TM9 software license SW20001: Multichannel Mode for the use of more than 4 channels
