Tailor Made Models
TM7-Dante
7" Desktop TouchMonitor for AoIP network based Post Production, TV Broadcast and Video Editing
- 7 inch TouchMonitor desktop unit with power supply
- 32 channel Dante® AoIP

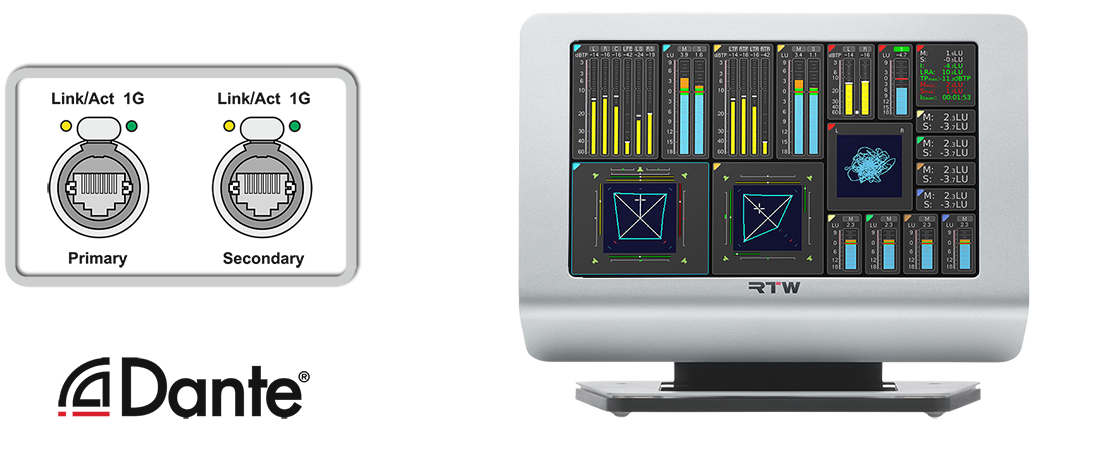

7 inch desktop TouchMonitor with a 16:9 TFT touch screen display.
32 channel Dante® AoiP I/O via dedicated primary and secondary RJ-45 connectors.
VGA video signal output, RJ-45 Ethernet connectivity, 2 USB 2.0 ports, a GPIO port and a 12 - 24 V DC interlocking power connector Binder 710 type.
Standard software. Power supply 1178-R included.
Order No.: TM7-Dante
Basic Software
The unit comes with a basic software package. Beside the control functions, this software is able to process the signals of up to 4 routed channels in a maximum count of 4 groups at a time (up to 4 x Mono, 2 x 2-channel Stereo, 1 x 2-channel Stereo and up to 2 x Mono; no 3.1).
- 4-channel PPM and TruePeak Meter for 4 x Mono to 2 x Stereo
- Stereo Correlator for display of phase relationship, AES Status, Gain Reduction, Global Keyboard
- Software licenses allow flexible configuration according to your needs
Recommended Software Licenses
For multi-channel, surround sound, loudness and more detailed audio analysis, we recommend the use of the following licenses
