TM7-Rack
7" Rack-mount TouchMonitor for TV Broadcast and Post Production
- 7 inch TouchMonitor rack-mount unit w/o power supply
- 3G-SDI - 32 channels
- 8 channel AES3 digital I/O via 25p-f d-sub

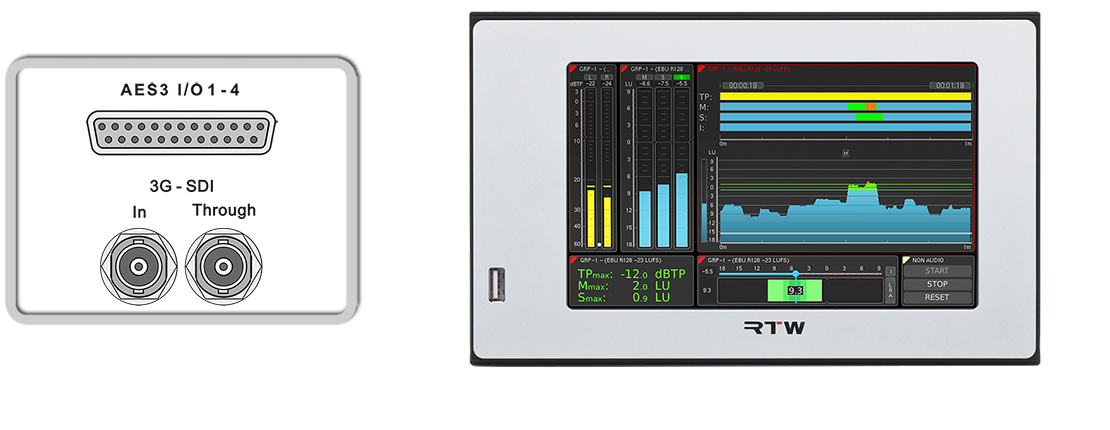

7 inch rack-mount TouchMonitor including half-19"/3U/42HP rackmount panel and fastening material for TEK rack mounting with a 16:9 TFT touch screen display.
8 channel digital AES3-format I/O via D-sub 25p-f and 3G-SDI interface.
VGA video signal output, RJ-45 Ethernet connectivity, 2 USB 2.0 ports, a GPIO port and a 12 - 24 V DC interlocking power connector Binder 710 type.
Standarad software. Without power supply.
Order No.: TM7-Rack
Rear view of TM7-Rack, pictured without the delivered fastening rods.
Basic Software
The unit comes with a basic software package. Beside the control functions, this software is able to process the signals of up to 4 routed channels in a maximum count of 4 groups at a time (up to 4 x Mono, 2 x 2-channel Stereo, 1 x 2-channel Stereo and up to 2 x Mono; no 3.1).
- 4-channel PPM and TruePeak Meter for 4 x Mono to 2 x Stereo
- Stereo Correlator for display of phase relationship, AES Status, Gain Reduction, Global Keyboard
- Software licenses allow flexible configuration according to your needs
Recommended Software Licenses
For multi-channel, surround sound, loudness and more detailed audio analysis, we recommend the use of the following licenses
Accessories
1178-R - Wide Range Power Supply
Wide range 100 - 240 V AC/24 V DC 2.71 A, table-top power supply with corresponding power cable for different power supply systems
