Tailor Made Models
TM7-Studio
7" Desktop TouchMonitor for Audio Production and Post Production
- 7 inch TouchMonitor desktop unit with power supply
- 8 channel AES3 digital I/O via 25p-f d-sub
- 8 channel analog inputs via 25p-f d-sub
7 inch desktop TouchMonitor with a 16:9 TFT touch screen display.

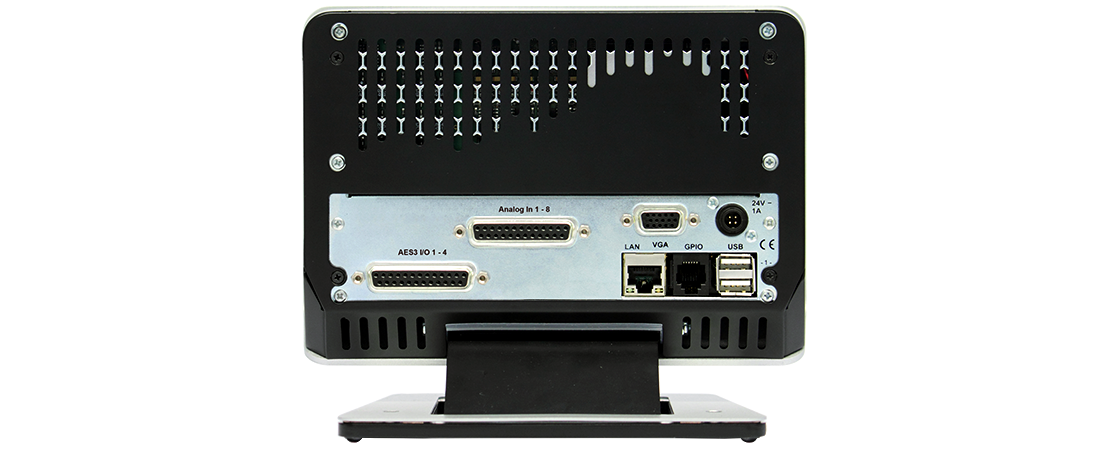

8 channel digital AES3-format I/O and 8 channel analog inputs both via D-sub 25p-f.
VGA video signal output, RJ-45 Ethernet connectivity, 2 USB 2.0 ports, a GPIO port and a 12 - 24 V DC interlocking power connector Binder 710 type.
Standard software. Power supply 1178-R included.
Order No.: TM7-Studio
Basic Software
The unit comes with a basic software package. Beside the control functions, this software is able to process the signals of up to 4 routed channels in a maximum count of 4 groups at a time (up to 4 x Mono, 2 x 2-channel Stereo, 1 x 2-channel Stereo and up to 2 x Mono; no 3.1).
- 4-channel PPM and TruePeak Meter for 4 x Mono to 2 x Stereo
- Stereo Correlator for display of phase relationship, AES Status, Gain Reduction, Global Keyboard
- Software licenses allow flexible configuration according to your needs
Recommended Software Licenses
For multi-channel, surround sound, loudness and more detailed audio analysis, we recommend the use of the following licenses
